피스톤식콘트롤밸브/Piston Control Valve

제품모델 List
# On-Off or Shut-Off, # 컨트롤 밸브, #Globe 밸브, #Piston Type, # 자동밸브, #Pneumatic Actuator

Actuator type	Fluid	Material		End Connection & Pressure	Size	Model No.
Actuator type	Fluid	Body	Trim	End Connection & Pressure	Size	Model No.

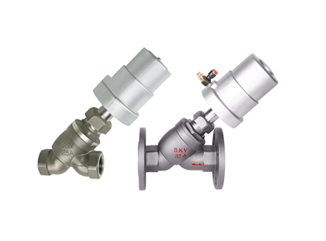

• PISTON - Y type	• Water / Air • Gas, Steam • Oil	• BC • STS	• STS • BSBM	• PT Screwed	• 15~50	• SYV-1, 1S
• PISTON - Y type	• Water / Air • Gas, Steam • Oil	• STS • BC	• STS • BSBM	• Flange RF or FF 10K,20K,30K	• 15~65	• SYV-1F

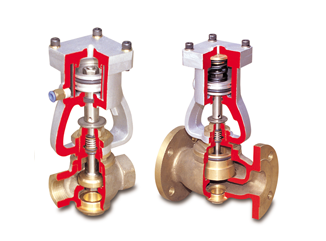

• PISTON – T type (피스톤 실린더 외장)	• Water / Air • Gas, Steam • Oil	• BC	• STS	• PT Screwed	• 15~50	• DPCV-4S
		• BC	• STS	• Flange RF or FF 10K,20K,30K	• 15~50	• DPCV-4F
		• STS • BC	• STS	• PT Screwed	• 15~50	• DPCV-5,5S
		• STS • BC	• STS	• Flange RF or FF 10K,20K,30K	• 15~50	• DPCV-5F

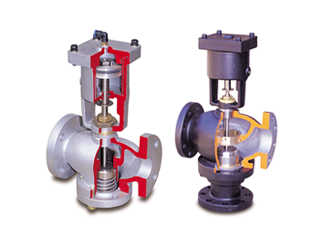

• PISTON – T type (피스톤 실린더 내장)	• Water / Air • Gas, Steam • Oil	• GC	• STS	• Flange RF or FF 10K,20K,30K	• 15~100	• DPCV-1 • SDCV-3
