모터컨트롤밸브/Motor Control Valve(MOV,MCV)
Model List
| 용도/기능 | Actuator type | Fluid | Material | End Connection & Pressure | Size | 모델번호 | |
|---|---|---|---|---|---|---|---|
| Body | Trim | ||||||
|

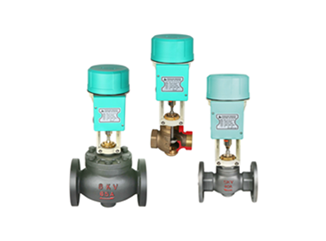

•On-Off or Shut-Off •컨트롤 밸브 •2 Way Globe 밸브 |
•Motor Proportional |
•Water / Air •Steam •Hot Oil(220-350℃) |
•BC |
•STS •BC |
•PT Screwed | •15~50 | •SMCV-1S |
| •GC |
•STS •BC |
•Flange 10K,20K | •15~150 | •SMCV-1F | |||
|

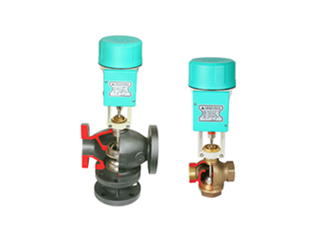

•On-Off or Shut-Off •컨트롤 밸브 •3 Way Globe 밸브 |
•Motor Proportional |
•Water / Air •Steam •Hot Oil(220-350℃) |
•BC |
•STS •BC |
•PT Screwed | •15~50 | •SMCV-2S |
| •GC | •STSv •BC | •Flange 10K,20K | •15~150 | •SMCV-2F | |||
|

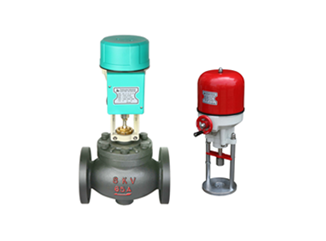

•On-Off or Shut-Off •컨트롤 밸브 •2 Way Globe 밸브 |
•Motor Proportional, Balancing (피스톤 실린더 내장) |
•Water / Air •Steam •Hot Oil(220-350℃) |
•GC | •STS •BC | •Flange 10K,20K |
•32~150 •200이상 주문생산 |
•SMCV-3F |
|

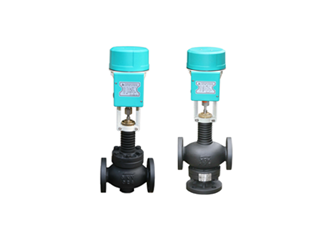

•On-Off or Shut-Off •컨트롤 밸브 •2,3 Way Globe 밸브 |
•Motor Proportional |
•Hot Oil(220-350℃) •열매체용 |
•GCD •STS | •STS •BC | •Flange 10K |
•32~150 •200이상 주문생산 |
•SMCV-3 |
※ 주요 사용처 : 제조공장, 아파트, 빌딩, 온실 등의 온도조절용으로 사용함
