일반용 감압밸브/Pressure Reducing Valve(PRV)
제품모델 List
# On-Off or Shut-Off, # 컨트롤 밸브, #Globe 밸브, # Diaphragm Type, # 자동밸브
| 용도/기능 | Pressure(kg/cm2g) | Actuator type | Fluid | Material | End Connection & Pressure | Size | 모델번호 | |
|---|---|---|---|---|---|---|---|---|
| Body | Trim | |||||||
| •감압 | •P1 : 10~30 •P2 : 0.5~16 |
•Diaphragm External(실린더 내장) |
•Water, Air, Oil •Gas, 산소,질소 •Hot Water,증류수 |
•GC,GCD
•CS •STS |
•STS
•BC |
•Flange 10K,20K,30K | •15~250 | •SRCV-22W |
| •감압+유량조절 |
•P1 : 10~30 •P2 : 0.5~16 |
•Diaphragm External |
•Water, Air, Oil •Gas, 산소,질소 •증류수 |
•STS All |
•STS | •Flange 10K,20K,30K | •15~25 | •SRCV-20F |
| •PT Screwed | •15~25 | •SRCV-20W | ||||||
| •감압 |
•P1 : 10~30 •P2 : 0.5~15,16 |
•Diaphragm External |
•Water, Air,Oil •Gas, 산소,질소 •Hot Water,증류수 |
•GC,GCD •CS, STS |
•BSBM •STS |

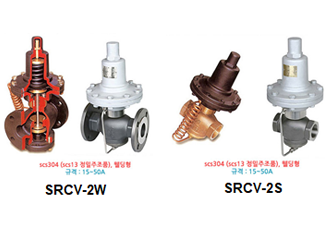

•Flange 10K,20K,30K | •15~250 | •SRCV-2W |
|
•BC •STS |
•STS •BSBM |
•PT Screwed | •15~50 | •SRCV-2S | ||||
| •감압-저압용 |
•P1 : 10 •P2 : 0.1~1.0 |
•Diaphragm External |
•Low Steam •Low Gas •Hot Water |
•GC,GCD •CS •STS |
•STS •BC |
•Flange 10K,20K,30K | •15~250 | •SRCV-2 |
| •감압-저압용 |
•P1 : 10 •P2 : 주문사양 |
•Pilot | •Steam |
•GC,GCD •CS, STS |
•STS •BC |
•Flange 10K,20K,30K | •40~200 | •SRCV-1 |
| •Direct Acting | •Steam |
•GCD,BC •STS |
•STS •BC |
•PT Screwed | •15~32 | •SRCV-3 | ||
| •감압-저압용 |
•P1 : 10 •P2 : 주문사양 |
•Y-type 공압식 PRV |
•Steam | •BC •STS |
•STS •PTFE |
•Flange 10K,20K,30K | •15~65 | •SYRF-1F |
| •감압 |
•P1 : 10 •P2 : 0.1~1.0 |
•Solenoid Control + Piston Acting |
•Steam | •GC |
•STS •BC6 |
•Flange 10K | •40~150 | •SSCV-1 |
Model List
| MODEL | SIZE(mm) | FLUID | Pressure (kgf/㎠g) |
END CONNECTION |
METERIAL | TYPE | ||
|---|---|---|---|---|---|---|---|---|
| P1 | P2 | BODY | SEAT, DISC | |||||
| SRCV-1 |
15-250 (½″~10″) |
Steam |
10이하 20이하 |
0.5-2 1-3 3-5 5-8 7-16 |
KS 10,20,30 kgf/㎠g FLANGE ANSI, DIN |
FC 200, FCD 450 SCPH2 STS304 STS316 |
STS304 STS316 STS316L BC |
PILOT |
| SRCV-1A |
PILOT REDUCING+ON-OFF |
|||||||
| SRCV-2S |
15-50 (½″~2″) |
Steam | 3 | 0.2-1.2 | PT SCREWED | BC |
STS304 BC |
DIAPHRAGM |
| SRCV-2S |
15-250 (½″~10″) |
Steam | 3 | 0.3-1.2 |
KS 10kgf/㎠g ANSI DIN |
FC 200 FCD 450 SCPH2 STS304 STS316 |
STS304 STS316 BC |
DIAPHRAGM 직동식 |
|

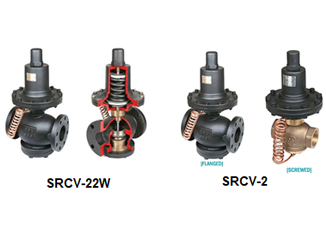

SRCV-2W (SRCV-22W) |
15-50 (½″~2″) |
Water Air Gas Oil |
10 |
0.3-2 1-3 3-7 5-8 |
PT SCREWED | BC |
STS304 STS316 BC |
DIAPHRAGM 직동식 (Cylinder 내장type) |
| SRCV-2 |
15-250 (½″~10″) |
Water Air Gas |
10 20 30 |
0.3-2 1-3 3-7 5-8 7-16 |
KS 10,20,30 kgf/㎠g FLANGE ANSI DIN |
FC 200 FCD 450 SCPH2 STS304 STS316 |
STS304 STS316 BC |
DIAPHRAGM 직동식 |
|

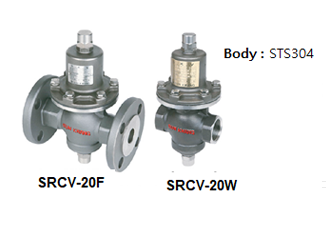

SRCV-20F (Welding) |
15-25 (½″~1″) |
Water Air Gas Oil |
10 20 30 |
0.3-2 1-3 3-7 5-8 7-15 |
KS 10,20,30 kgf/㎠g FLANGE ANSI DIN |
STS304 | STS304 |
DIAPHRAGM 직동식 |
| SRCV-20W | PT SCREWED | |||||||
|
SWCV-3 |
40-300 (½″~12″) |
Water Air |
10 |
주문 사양 |
KS 10,20,30 kgf/㎠g FLANGE |
FC 200 FCD 450 SCPH2 STS304 STS316 |
STS304 BC |
WATER CONTROL TYPE |
