1차압력조절밸브/Pressure Regulating Valve
제품모델 List
#Pressure Regulating #컨트롤 밸브, #Globe 밸브, # Diaphragm Type, # 자동밸브
| 용도/기능 | 사용온도 | Actuator type | Fluid | Material | End Connection | Size | 모델번호 | |
|---|---|---|---|---|---|---|---|---|
| Body | Trim | |||||||
|
•1차압력조절 •컨트롤 밸브 •릴리프밸브/ Relief Valve •Globe 밸브 |
•Max.80℃ |
•Diaphragm Acting •Diaphragm Direct Internal |
•Water, Oil, Air, Gas, •산소, 질소, 증류수 |
•BC •STS |
•STS •BSBM |

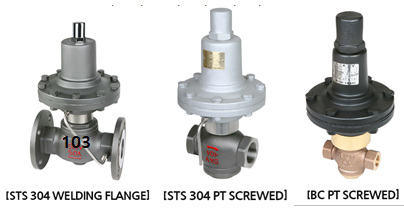

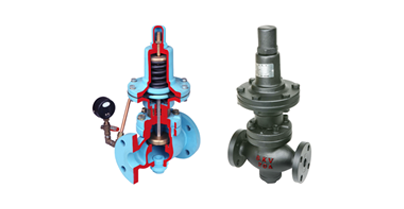

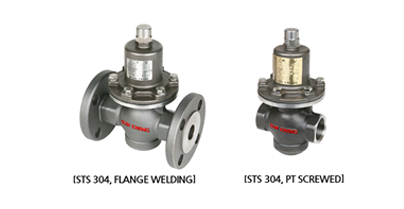

•Flange 10 FF | •15~150 | •SDPV-2 |
|
•PT Screwed |
•15~50 | •SDPV-2 | ||||||
| •Max.80℃ | •Pilot Valve |
•Water, Air, •Oil, 증류수 |
•GC200 |
•STS, BSBM •Diaphragm: NBR |
•Flange 10 FF |

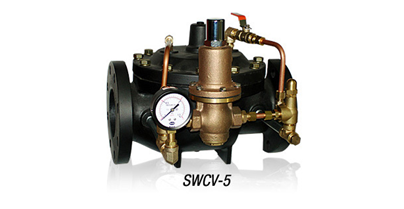

•40~250 | •SWCV-5 | |
