차압(유량)조절밸브/ Differential Pressure Regulating Valve
제품모델 List
#Pressure Regulating #컨트롤 밸브, #Globe 밸브, # Diaphragm Type, # 자동밸브
| 용도/기능 | 사용온도, 압력 | Actuator type | Fluid | Material | End Connection & Pressure |
Size | 모델번호 | |
|---|---|---|---|---|---|---|---|---|
| Body | Trim | |||||||

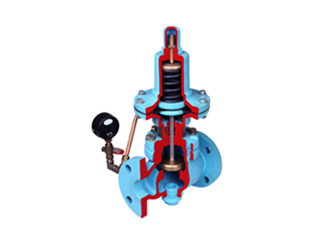

| •차압조절 |
•Max.80℃ •작동최소차압: 0.5kgf/㎠ |
•Diaphragm Acting |
•WATER, OIL | •GC200 |
•STS •BSBM |
•Flange 10 FF | •15~150 | •SDPV-1 |

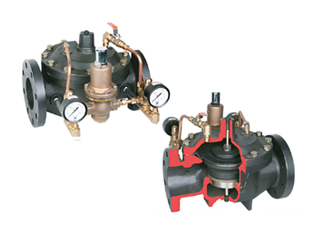

| •Max.80℃ | •Pilot Valve | •WATER, AIR, OIL | •GC200 | •STS | •Flange 10 FF | •40~200 | •SWCV-4 | |

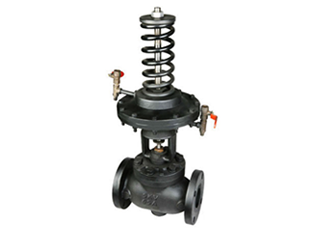

| •차압(유량)조절 |
•Max.80℃ •작동최소차압:0.5kgf/㎠ •정격유량의 5%~100% |
•Diaphragm Acting | •WATER (냉수, 온수, 고온수) |
•10K:GC200 •20K:SCPH2 |
•10K:STS,BSBM •20K:STS |
•Flange 10, 20 FF | •15~150 | •SDPV-3 |
