스팀용 감압 밸브/Pressure Reducing Valve
제품모델 List
# On-Off or Shut-Off, # 컨트롤 밸브, #Globe 밸브, # Diaphragm Type, # 자동밸브
| MODEL | SIZE(mm) | FLUID | Pressure (kgf/㎠g) |
END CONNECTION |
METERIAL | TYPE | ||
|---|---|---|---|---|---|---|---|---|
| P1 | P2 | BODY | SEAT, DISC |
|||||

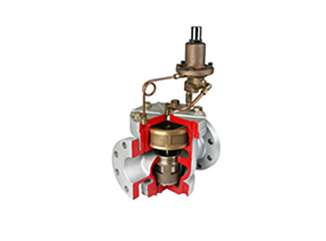

| • SRCV-1 | 40-250 (½′~10′) |
Steam |
10이하 |
주문사양 |
KS 10,20K FF ANSI, DIN |
GC 200 SCPH2 STS |
STS304 STS316 BC 6 |
PILOT ACTING |

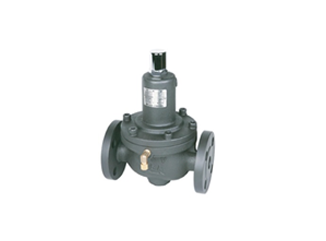

| • SRCV-3 |
15-32 (½′~1 1/4′) |
Steam | 10이하 | 주문사양 |
KS 10,20K FF ANSI, DIN |
STS GCD |
STS BC6 |
DIRECT ACTING |

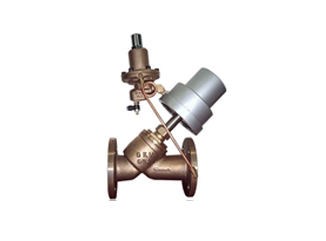

| • SYRF-1F |
15-65 (½′~2½′) |
Steam | 10이하 | 주문사양 | KS 10,20K FF |
BC STS |
STS PTFE |
Y TYPE
공압식 |

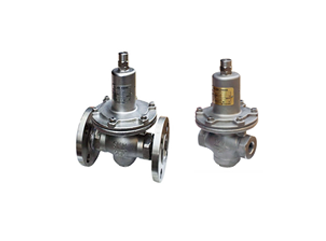

| •SRCV-20F |
15-25 (½′~1′) |
WATER,
AIR, GAS, OIL, 산소, 질소, 수소, 증류수, HOT WATER |
10~20 |
0.5~16 |
KS 10,20,30 kgf/㎠g FLANGE ANSI, DIN |
STS304 | STS304 |
DIAPHRAGM 직동식+유량조절 |
| •SRCV-20W | PT SCREWED | |||||||
